WLS906
Photoelectric Smoke Detector
- Exclusive 90 degree smoke
detection pattern
- Automatic self test
- Manual test button
- Loud 85dB alarm horn
- Fully supervised for:
- tamper - low battery
- device fault - low sensitivity
- ULC listed S531,
UL listed UL217 & UL268
- 6 AA batteries (supplied)
|

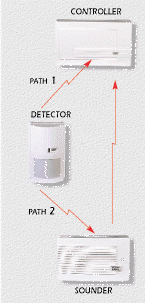

True Diversity
-
RF Communications:
Each transmitter has two paths
to the controller:
#1direct to controller
#2through sounder to controller
Only one path has to be open to
complete a transmission
|
WLS902
Plain Language Keypad
- Full 2 way communications
- 2 keypads per system (max.)
- Large 32 character display
backlit for low light conditions
- 3 emergency keys (F, A, P)
- Module placement
test mode reporting
- Fully supervised for: - tamper - low battery - device fault
- 4 AA batteries supplied
|
WLS901
System Controller
- 10 zones 10 user codes
- Built-in digital communicator
with telephone jack
connections
- Fully supervised for:
- tamper
- low battery
- device fault
- AC failure
- telephone line integrity
- AC adapter supplied
- 1.2 AH sealed battery supplied
|
WLS903
Sounder/Repeater
- Siren and audible annunciator
- 85dB adjustable siren volume
- Back-up signal repeater between
wireless devices and controller
- 2 per system (max.)
- Door chime
- Fully supervised for:
- tamper - low battery
- device fault - AC failure
- AC adapter supplied
- 4 AA alkaline batteries supplied
|
Reliable Installation & Testing
- module placement test mode
- allows installer to carry a keypad to the proposed loca-tion
for a system module (sounder, keypad, detector)
and test communications to the controller before the
module is installed. Keypad reports whether proposed
location is “good”, “fair” or “bad”.
- walk test mode
- allows installer or user to test device placement
- sounder test mode - tests sounder operation
- manual dialer test mode
- tests dialer communication to monitoring station
|
WLS904
Passive Infrared Detector
- Proven detector design
- 4 interchangeable lenses
- wall to wall - corridor
- curtain - pet alley
- Lens coverage same as
Bravo3 (pg. 15)
- High traffic shut-down
- Fully supervised for:
- tamper - low battery
- device fault
- 4 AAA batteries (supplied)
|
WLS909
Wireless Key
- 4 programmable function
buttons of users choice such as
STAY arm, AWAY arm, Disarm,
Fire, Auxiliary, Panic,
Automation functions
- 3 A76 batteries supplied
|
WLS910
Keypad
- Performs most hardwired keypad functions, incl.
entry of access code to arm / disarm system and
other functions incl.: STAY arm, AWAY arm, F, P, A,
Chime On/Off, System Test, Utility Output, Reset,
Quick Exit, Reactivate Home/Away, PGM1 &
PGM2 outputs
- Keys 1-4 are programmable func. keys
- Separate F, A, P, keys
- Supervised for low battery
- 3 AAA batteries (supplied)
|
WLS907
Slim-Line Transmitter
- May be used as a magnetic door or
window contact or terminal
connection for an external contact
- 2 reed switch contacts for ease of
placement
- Fully supervised for:
- tamper - low battery
- device fault - open/close
- 3 AAA batteries (supplied)
|
